Note: To generate pre-flight files, it is necessary to register all your plots areas and restriction areas in the system beforehand, see Register of Fields.
To generating one flight plan file into Perfect Flight, click in left menu in Properties

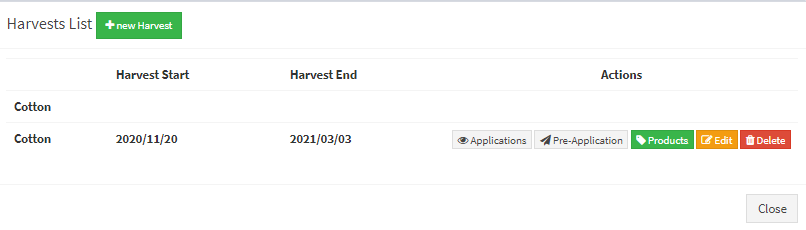

Inside to Properties click in "Harvest" referent at Propertie you want generating the Pre Flight file
Select the Property want you necessity generate Pre Flight file and click in "Harvest" after, click in "Pre Application"

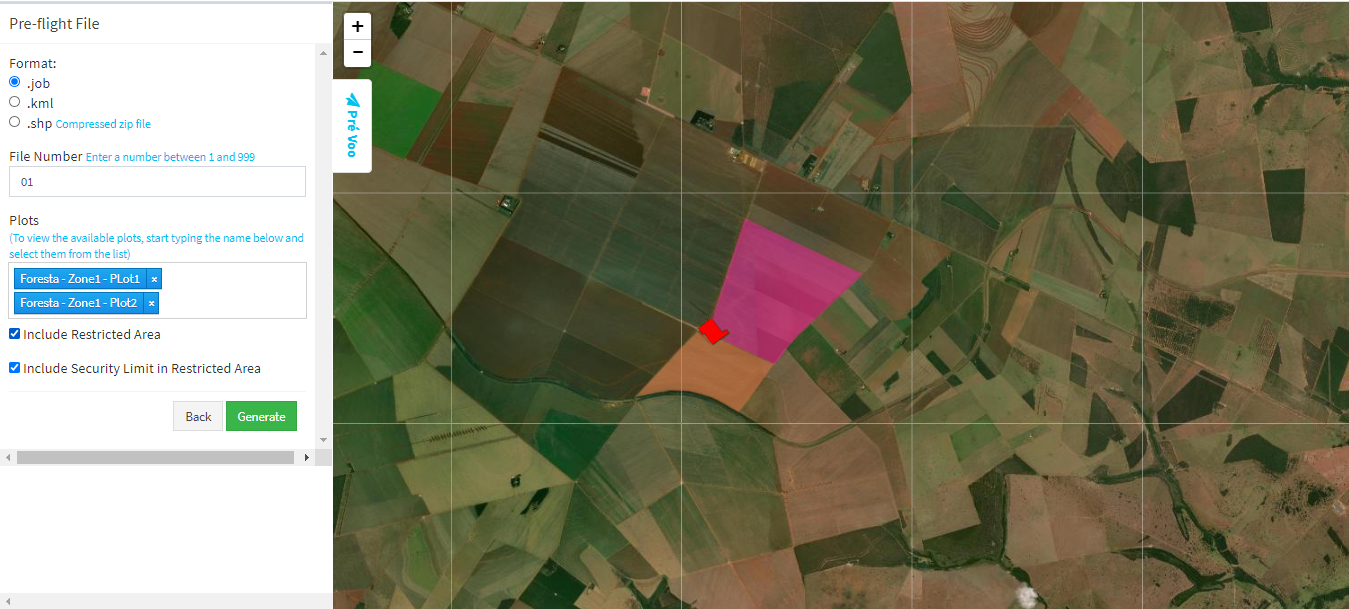

Will be open the Pre Application screen, you should to write in field "Plots" all plots names you want generate Pre-Flight Files
Select the export format of file, attention the correct format for to type DGPS utilized in Aircraft.
.job: Compatible with DGPS:
SATLOC (All versions before the G4)
.kml: Compatible with DGPS:
Travicar (All versions),
Agnav (Only versions Gold, Silver and Platinum)
Satloc (Only G4 version)
.shp: Compatible with DGPS:
Agnav (All Others Versions)
After to select your "Plots" and "Format" of export, write in "File Number" the one number between 1 to 999, this number it will be the name of file exported.
If you want include in your file all restriction areas impacted this plots include you must select "Include Restricted Area" for the system consider only restrict areas into file generating.
Select "Include Security Limit in Restricted Area" for the system consider include restrict areas and the margin of protection in this restriction areas into file generating.
After this click in "Generate" for Download Pre Flight file
And lastly, save the generated file on a removable disk (USB device) .and provide it to the pilot to insert it into your DGPS before the flight and visualize your targets correctly
Note: that the restriction and security limit areas are not shown on this map, but are all included in the file and all restriction areas inside to plot selected are not generated in this process.
Note: is recommended that the generating the Post Flight logs, is only send after spraying in the total area genereted in the Pre Flight is finished, this will avoid delay in the processing and inspection this sprayings and result in better levels for applications
